Structural Steel Fabricators • Turnkey Industrial EPC Constructors
To:
Engr. Kawish
Sub-Divisional Officer (SDO)
Directorate of Food, Government of Gilgit-Baltistan
Subject: Technical & Commercial EPC Bid for 102' × 425' × 35' Clear-Span Strategic Wheat Godown at Islamabad
Respected Sir,
With reference to your official technical requisition regarding the construction of a Pre-Engineered Steel (PEB) Warehouse for the strategic storage of wheat reserve stock in Islamabad, Fusion Developers (Pvt) Ltd is honored to submit this comprehensive, bankable EPC Engineering & Commercial Proposal.
We have strictly adhered to all your mandatory architectural and operational parameters:
Our 20-member Senior Engineering Advisory Committee—spanning PhD structural dynamicists, PASSCO-certified grain agronomists, and ASNT Level-III inspectors—has vetted every calculation herein. We assure the Government of Gilgit-Baltistan that this facility will stand as a benchmark of national food security for generations.
Mian Usman
Chairman & Managing Director
Fusion Developers (Pvt) Ltd
Dr. Arshad Khan, PE
Chief Structural Engineer (AISC/BCP Fellow)
Board of Structural Advisors
Key engineering dimensions, capacity metrics, and compliance standards for the Islamabad facility.
102'-0" Width × 425'-0" Length single contiguous footprint on a 250mm reinforced slab.
100% clear rigid portal frame. Tapered rafter haunches span wall-to-wall without intermediate posts.
Bottom-rolling motorized gates with 50-ft transfer jack beams, rated for 150 km/h wind gusts.
8,000 MT instantaneous holding in 48 ganjis, handling 35,000 MT/year across seasonal procurement cycles.
| Project Parameter | Client Mandatory Specification | Fusion Developers Engineered Solution | Compliance Status |
|---|---|---|---|
| Building Span & Framing | Width 102 ft (MUST be Single Span) | 102'-0" Clear Span Rigid Portal Frame (AISC 360-16 / BCP 2021). Zero interior posts. | 100% FULL COMPLIANCE |
| Length & Bay Spacing | Length 425 ft | 425'-0" Length divided into 17 structural bays @ 25'-0" c/c. Full longitudinal stability. | 100% FULL COMPLIANCE |
| Clear Eave Height | Height 35 ft | 35'-0" Clear Eave Height with 39'-3" Ridge Apex (1:12 roof slope) for ventilation buoyancy. | 100% FULL COMPLIANCE |
| Mega Industrial Gates | 3 Gates of size 30' × 20' | 3 Nos. Motorized Bottom-Rolling Heavy Sliding Gates (30' W × 20' H) with 50' Jack Beams. | 100% FULL COMPLIANCE |
| Walls & Roof Cladding | PPGI Walls & Roof | 0.50mm Galvalume AZ150 PPGI Roof + 0.45mm Walls + 50mm Insulated Sandwich with Alupet Foil. | ENHANCED FOOD GRADE |
| Storage Commodity | Storage of Wheat (Grain Reserve) | PASSCO-standard Ganji layouts, phosphine fumigation airtightness, SS304 anti-rodent screens. | PURPOSE ENGINEERED |

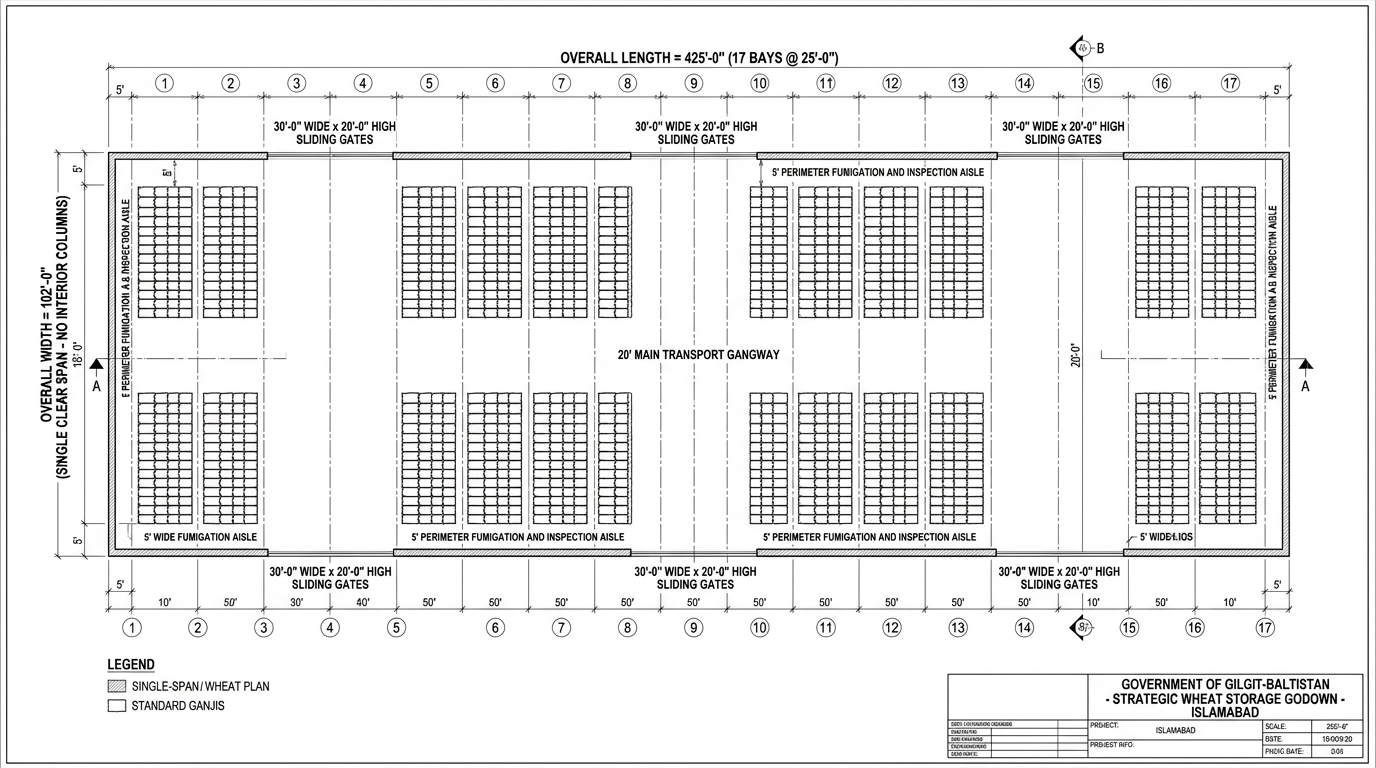

Engineered to scale • 102'-0" Clear Span • 17 Bays @ 25'-0" = 425'-0" • 3 Mega Gates (30' × 20')

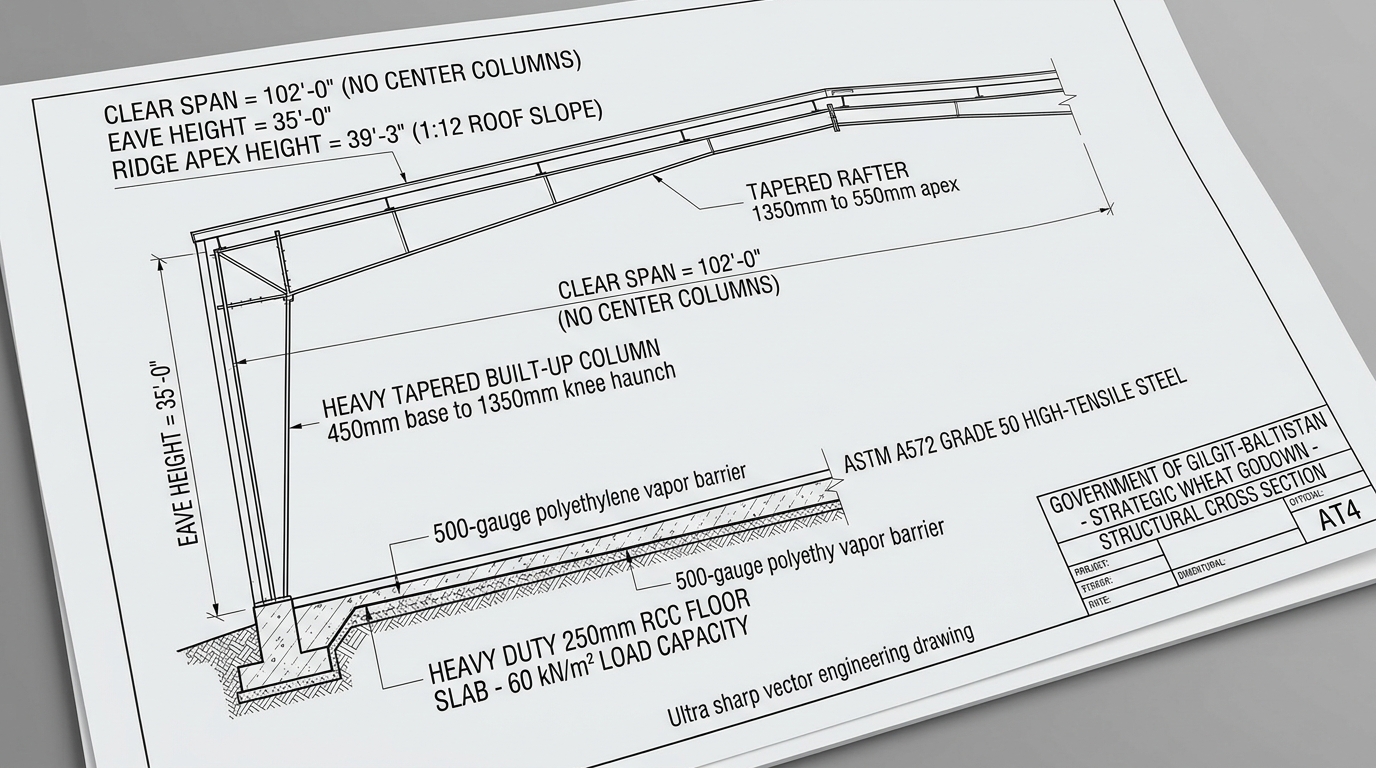

ASTM A572 Grade 50 High-Tensile Built-Up Members • 250mm Heavy-Duty 60 kN/m² Slab
Fabricated from ASTM A572 Grade 50 steel (Yield Strength Fy = 345 MPa). Knee haunch depth is 1,350 mm tapering to 550 mm at ridge apex to optimize bending moment resistance across 102 feet without internal columns.
To accommodate 30'-0" wide gates within standard 25'-0" bay spacing, heavy transfer jack beams span 50 feet across columns, transferring intermediate rafter gravity and wind reactions directly to foundation pedestals.
Class 30 MPa reinforced concrete slab with double-layer deformed rebar mesh. Features a 500-gauge polyethylene vapor barrier to eliminate groundwater capillary rise into stored grain. Rated for 60 kN/m² static load.
True 1:4.17 Aspect Ratio • Full 425' Facade • Column-Free Interior Expanse

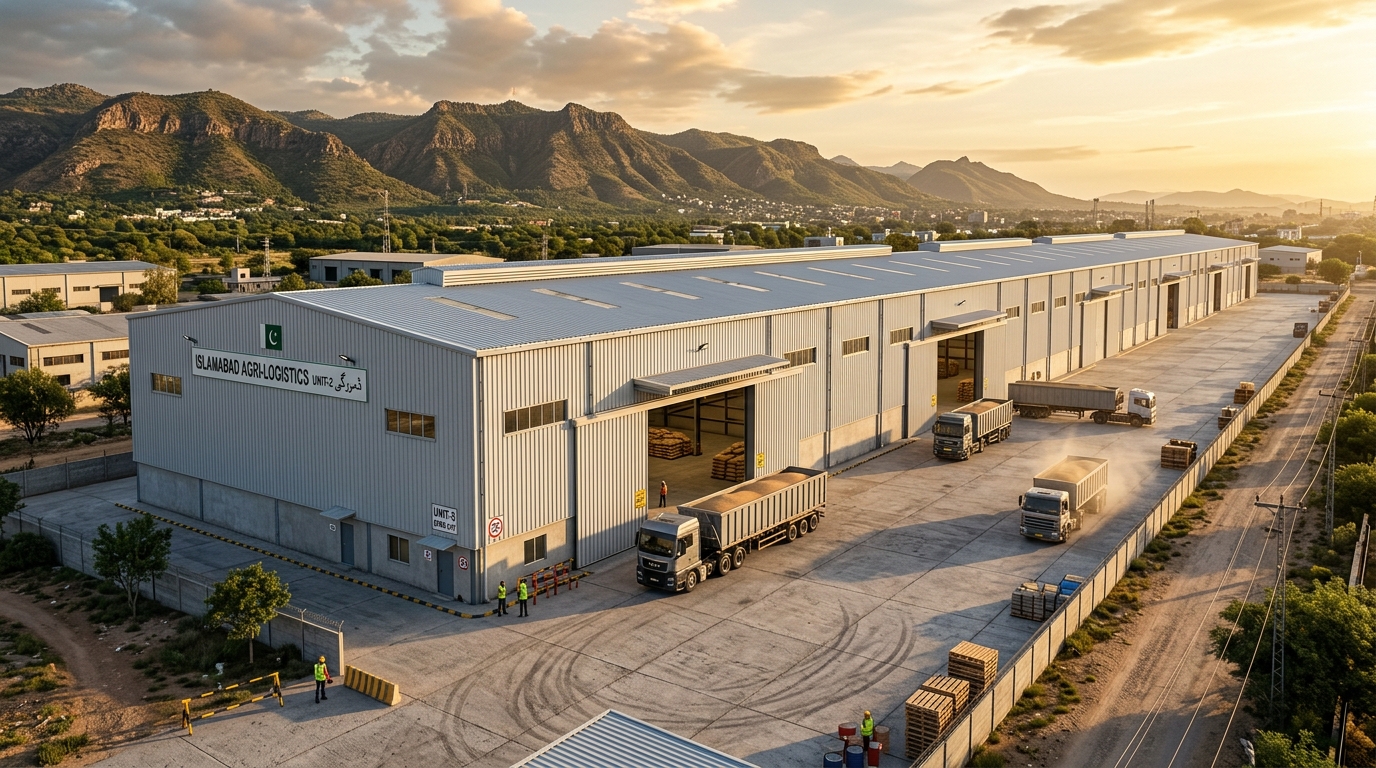

Shown above: The 425-foot longitudinal elevation situated in Islamabad industrial agri-corridor. Featuring three 30'×20' loading portals, deep concrete aprons, and insulated PPGI cladding engineered to withstand Islamabad monsoon storms and seismic movements.

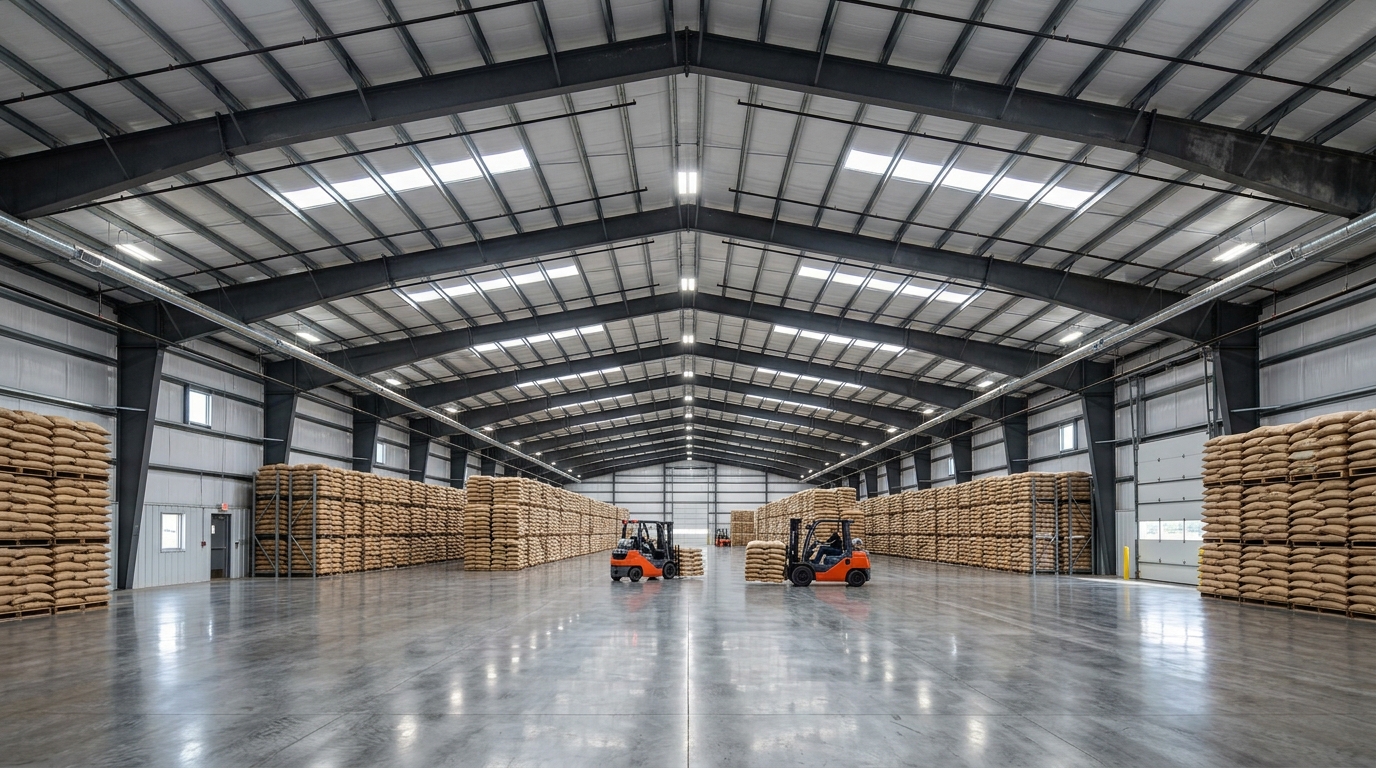

Demonstrating strict compliance with your single-span requirement: Not a single center column exists anywhere on the floor. 18-bag high wheat stacks are palletized along both wings, with continuous central forklift corridors and natural skylight illumination.

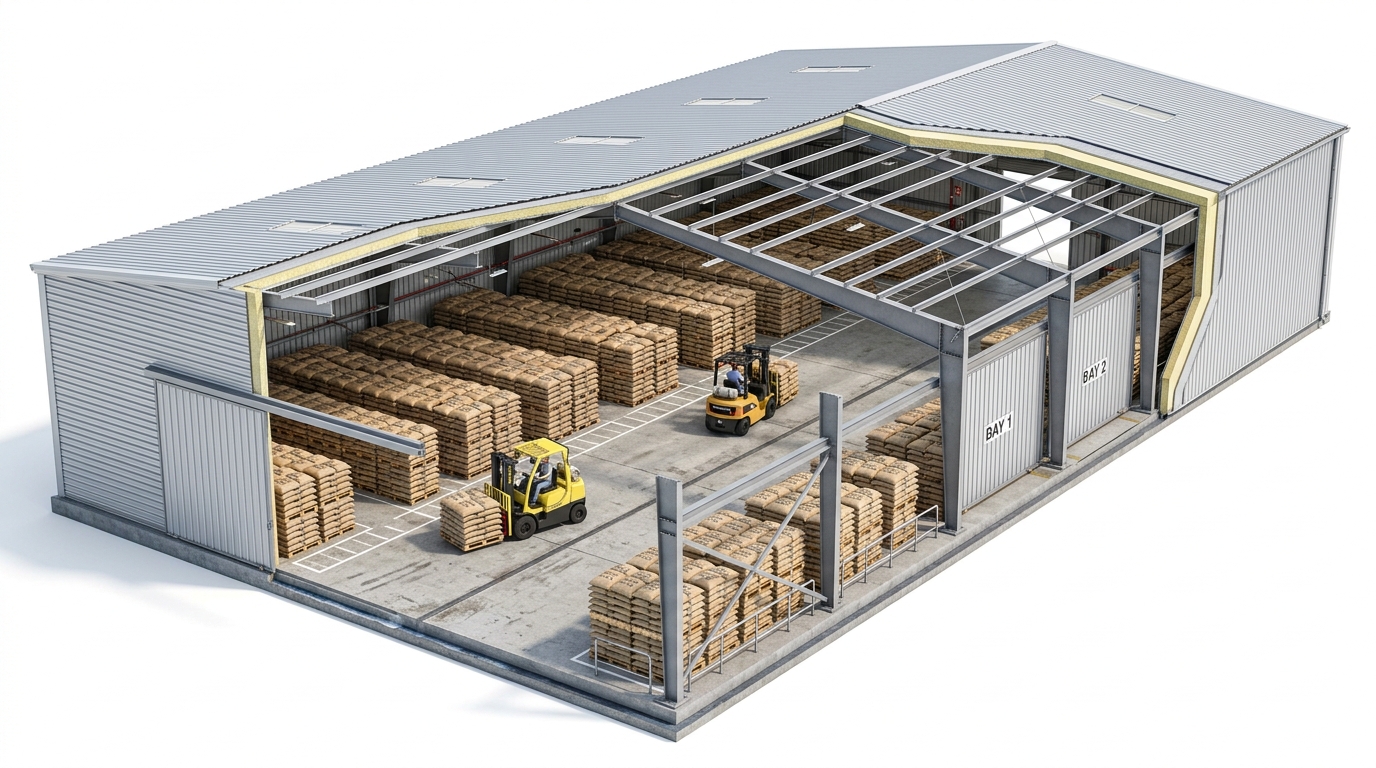

Cutaway visualization demonstrating the foundation-to-ridge synergy: 250mm reinforced concrete slab, steel knee haunches, insulated roof sandwich panels, and precision ganji stack blocks.
Vetted by PASSCO / FAO Grain Storage Standards • Safe Moisture & Fumigation Science
The 43,350 sq. ft. godown is calibrated for dual-mode grain storage, comfortably accommodating the strategic food reserves of Gilgit-Baltistan:
48 isolated ganjis (28' × 20') stacked 18 layers high (~4.0 m). Leaves 6.5 meters of headroom to eave/ridge for gas diffusion.
Based on 4 seasonal procurement cycles from Punjab/PASSCO to Gilgit-Baltistan, catering to the entire province's annual wheat quota.
At bulk density of 780 kg/m³ with internal RCC push-walls up to 5.0m height.
Calculate dynamic grain capacity based on stack configuration:
Motorized Bottom-Rolling Sliding Portals • 150 km/h Wind Resistance • Fumigation Airtight
A gate opening of 30 feet width by 20 feet height (600 sq. ft. surface area) presents extraordinary structural and wind-drag challenges. Our design incorporates:

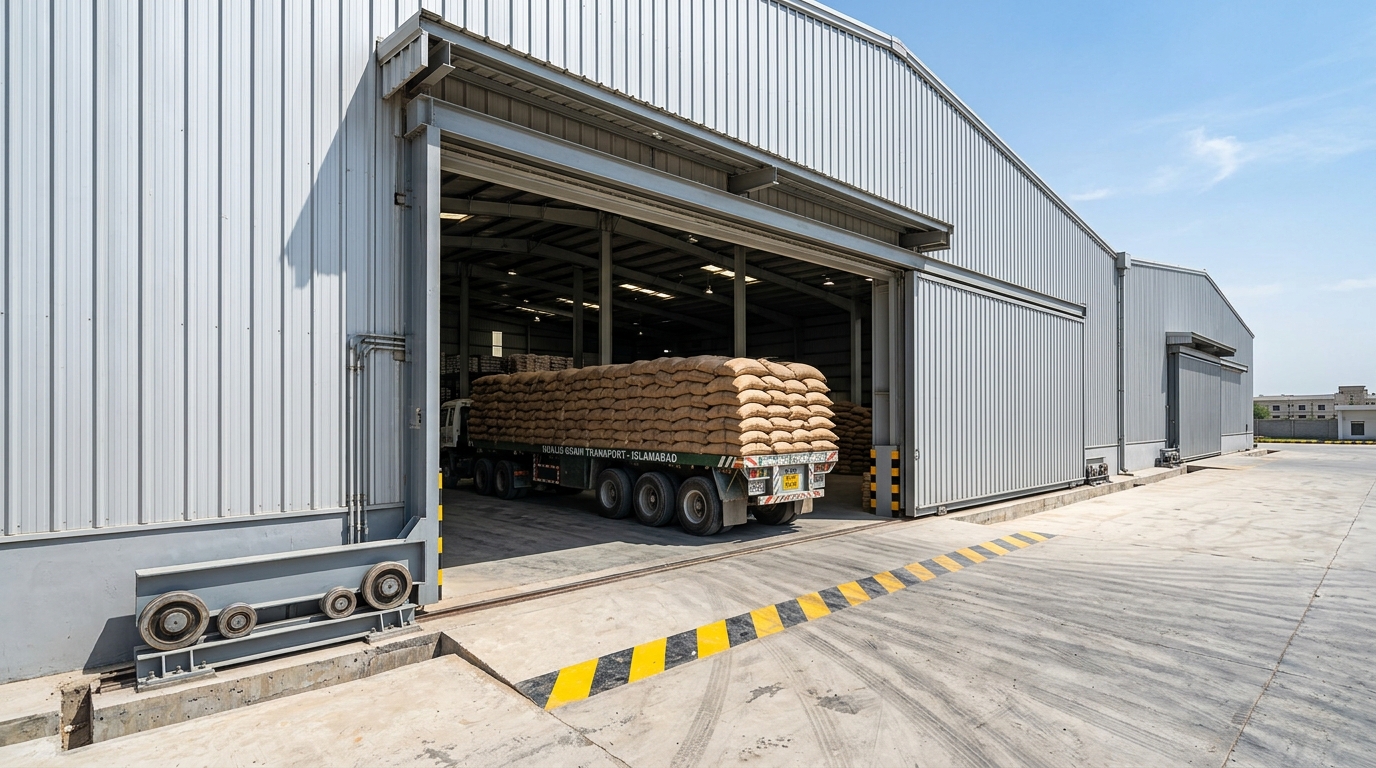

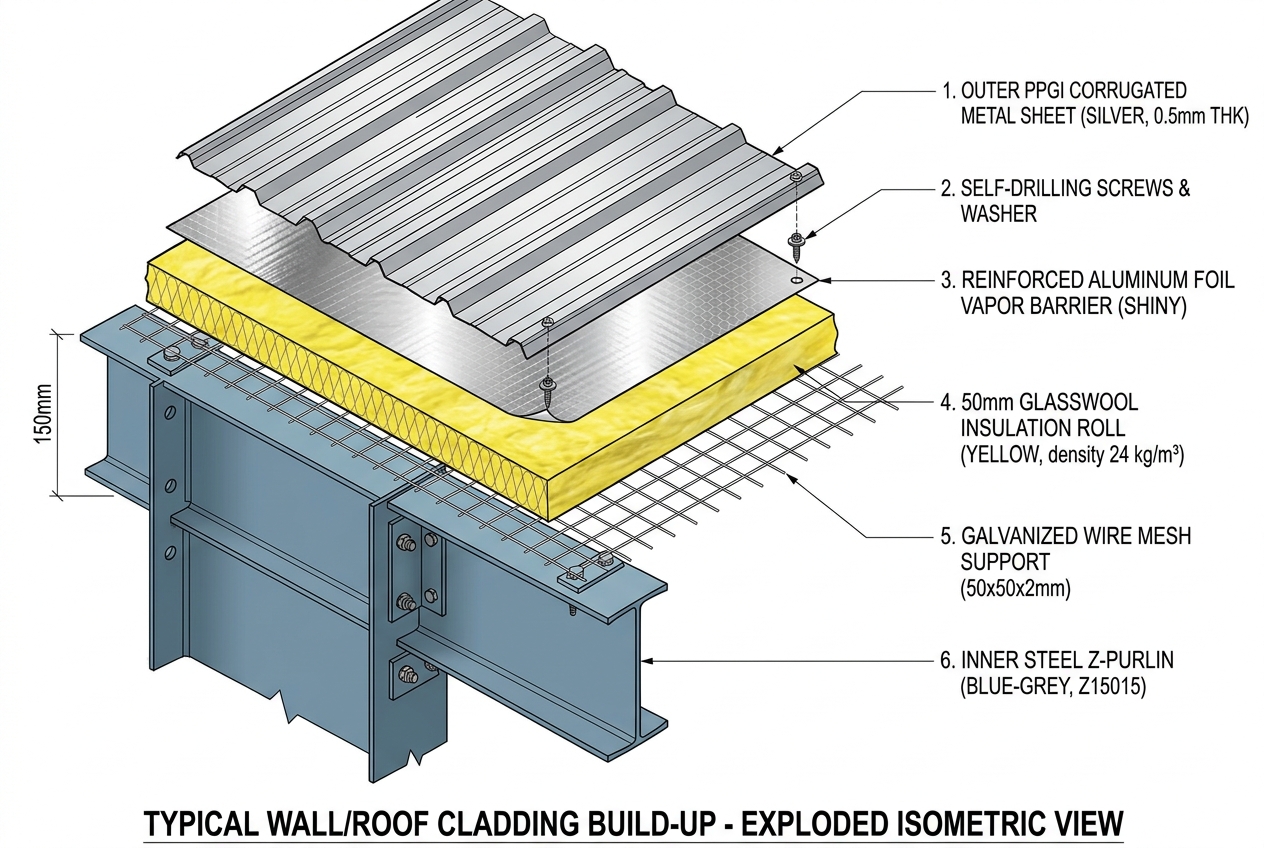

Eliminating Condensation Mould • Galvalume AZ150 • High-Density Glasswool
Islamabad experiences cold winter temperatures dropping to 1°C–3°C, while respirating wheat grain creates a warm, humid interior atmosphere. In an uninsulated metal shed, this causes severe condensation dripping onto wheat bags, leading to:
Our Engineered Solution:
Transparent Turnkey EPC Pricing • Prepared to Public Procurement Standards
Turnkey fabrication, transport, and site erection of structural steel frame and uninsulated PPGI envelope.
Everything in Package A, upgraded with complete condensation prevention, phosphine fumigation seals, and automated aeration.
Includes excavation, RCC isolated column footings, tie plinth beams, 250mm heavy-duty floor slab (Class 30 MPa concrete, double rebar mesh, 60 kN/m² capacity), 500-gauge vapor barrier, and perimeter truck asphalt/concrete aprons.
Primavera P6 Critical Path Baseline • Parallel Fabrication & Site Preparation
STAAD.Pro structural vetting, shop detailing, anchor bolt plan approval.
Automated SAW fabrication, CNC cutting, primer coating in Lahore yard.

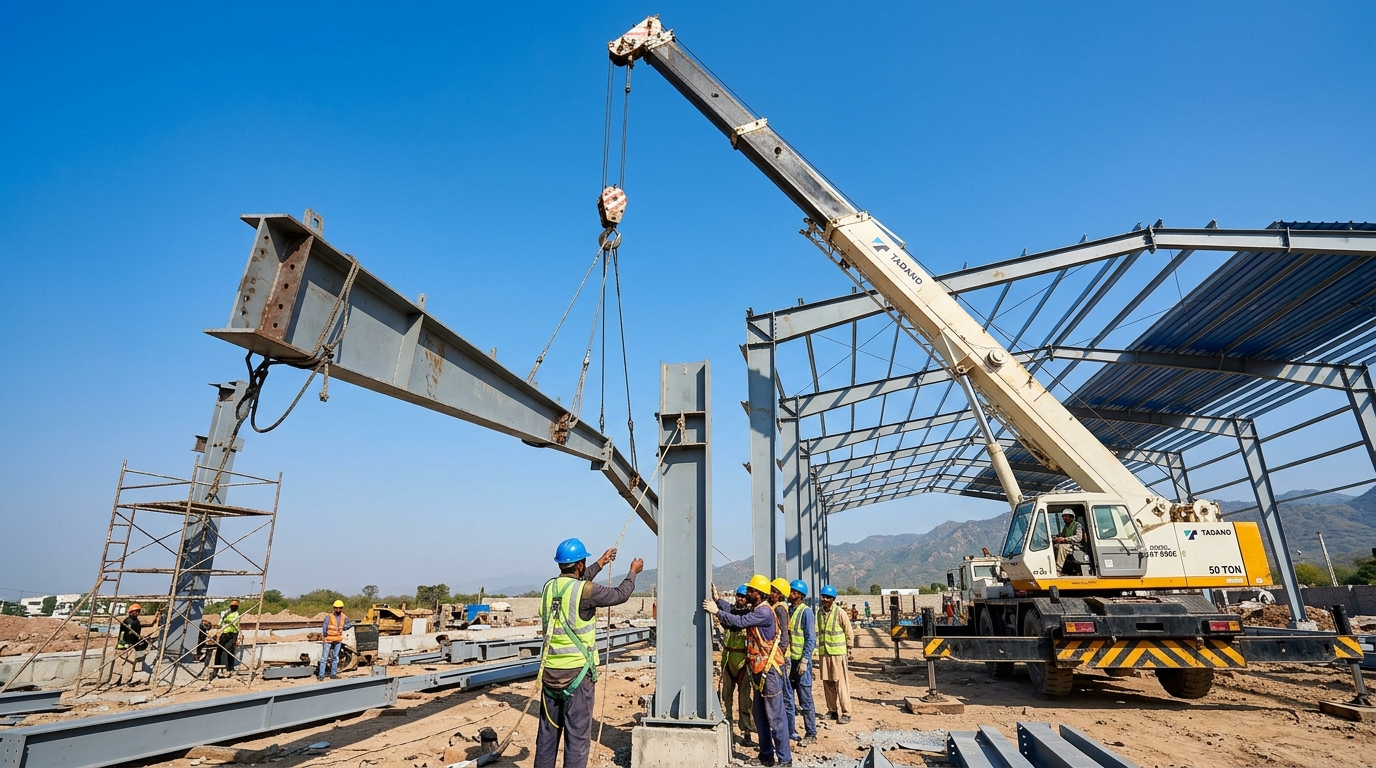

Heavy haulage to Islamabad, 50-ton crane erection, moment bolting.
PPGI roofing, 30'×20' gate installation, fumigation air test, handover.
Multi-Disciplinary Experts Vetting Design Integrity, Safety, and Compliance
PhD Structural Dynamics (AISC/BCP Fellow)
M.Arch, Industrial Master Planning
Ex-Consultant PASSCO / FAO Grain Storage
MSc Soil Mechanics, Islamabad Sector Expert
MSc Mechanical, Heavy Portals Specialist
ASHRAE Certified Thermal Analyst
PhD Earthquake Engineering (Zone 2B/3)
Industrial HVAC & Grain Dust Control
FRICS, Government Contract Estimator
PMP ®, Primavera P6 Certified
ASNT Level-III (UT, RT, MPI Certified)
LLM, PPRA & PEC Regulatory Advisor
NFPA Certified, Dust Explosion Specialist
28 Years Heavy PEB Rigging Veteran
Architectural Digital Twin Lead
Senior Structural Steel Detailer (Tekla/CAD)
Gov-Tech Portal Systems Architect
GSAP & Interactive Engineering Specialist
Senior Public Works Dossier Specialist
Fusion Developers (Pvt) Ltd

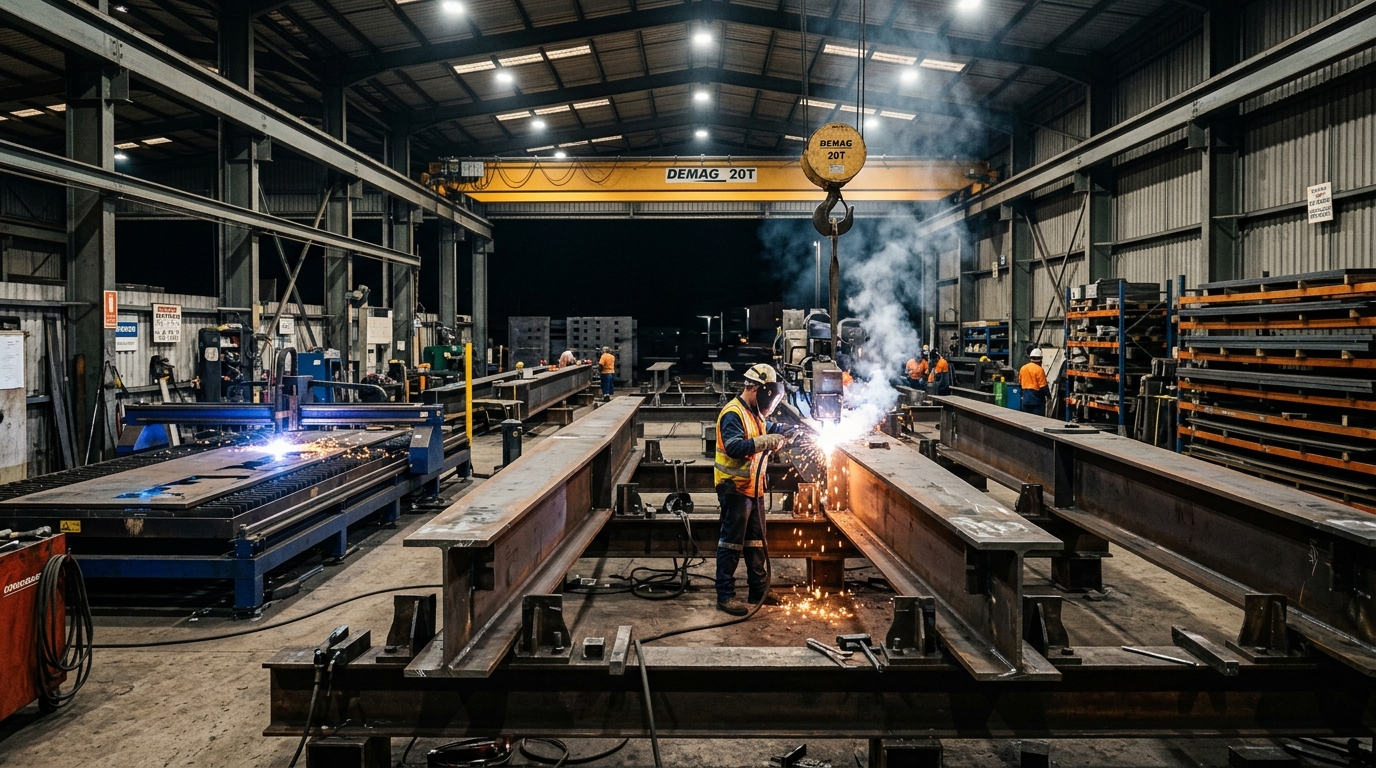

State-of-the-Art Automated SAW Welding • 50-Ton Crane Fleet • Proven Mega Projects
Fusion Developers (Pvt) Ltd maintains one of Punjab and Islamabad's premier automated steel manufacturing infrastructures:
"We do not merely construct warehouses; we build national infrastructure designed to safeguard Pakistan's strategic food security for the next 50 years."
